150ZH-2AB Gas Powered Tricycles for Adults Cargo Transport

SURRIT 150ZH-2AB provides heavy-duty gas powered tricycles for adults equipped with a ZS162FMJ-S engine, a 2.0m bed, and a 600kg capacity for commercial logistics.

Model:

SURRIT 150ZH-2AB Gas Powered Tricycles for Adults

Engine / Power Source:

ZS162FMJ-S (150 Air-Cooled Fuel Engine)

Electrical System:

12V 9Ah Battery

Maximum Speed:

60 km/h

Load Capacity:

Rated 600 kg (Curb Weight: 378 kg)

Cargo Box Size:

2.0m × 1.35m (2.0mm Patterned Bottom H-Type Box)

Application:

Heavy agricultural transport and commercial freight delivery

inquiry

Email: sales01@surritauto.com

Explanation

1: High-Torque 150 Engine Powertrain:
Driven by a ZS162FMJ-S 150 air-cooled engine, these gas powered tricycles for adults deliver continuous low-speed torque for climbing steep slopes under full loads. Unlike battery-powered utility trikes restricted by charging infrastructure, this fuel-powered model provides extended operational range and fast refueling, ensuring uninterrupted commercial freight transit across rural delivery routes.
2: Heavy-Duty 40×80 Frame & Dual Beam Skeleton:
Constructed with a national-standard 40×80 side beam frame and a dual side beam chassis skeleton, this vehicle enhances load-bearing capacity by over 30%. The chassis incorporates an integrated front windshield and front bumper layout directly into the frame. Paired with heavy-duty double-ear 6-leaf 17.5kg steel springs and a thick φ51 drive shaft, it maintains structural balance under heavy 600 kg payloads.
3: Extra-Large 2.0m Cargo Box & High-Grip Tires:
Outfitted with an expansive 2.0m × 1.35m cargo box featuring a 2.0mm patterned steel bottom, the load bed secures large volumes of farm produce and commercial freight. Deep-tread tires (110/90-16 front and 5.00-12 rear) ensure traction over mud, gravel, unpaved farm tracks, and market streets, allowing operators to haul heavy cargo without slippage.
4: Full-Floating Rear Axle & Hydraulic Front Shocks:
Suspension and braking safety are supported by front/rear drum brakes and φ43 outer spring hydraulic front shocks. The rear drivetrain incorporates a 5-hole 1060 Changan external full-floating Power King rear axle (φ70 bridge pipe, φ220 hub, spacer 860, 10:31 ratio). This heavy-duty axle configuration allows the vehicle to distribute high axle loads safely across uneven terrain.

Parameters

Parameter	Specification
Overall Dimensions (L×W×H)	3500 mm × 1380 mm × 1530 mm
Motor / Engine Model	ZS162FMJ-S (150 Air-Cooled Fuel Engine)
Motor / Engine Power	150cc Air-Cooled Engine Specification
Maximum Speed	60 km/h
Braking System	Drum Brake (Front Wheel, Rear Wheel)
Wheelbase	2440 mm
Track Width	1120 mm
Curb Weight	378 kg
Rated Load Capacity	600 kg

Characteristics

Standard Configuration

Component	Specification
Motor / Engine	ZS162FMJ-S 150 Air-cooled Engine
Controller / Battery	12V 9Ah Battery & Mechanical Ignition System
Frame	40×80 Side Beam Frame with Dual Side Beam Skeleton
Cargo Box	2.0m × 1.35m 2.0mm Patterned Bottom H-Type Right-Angle Box
Front Wheel	110/90-16
Rear Wheel	5.00-12
Shock Absorber	φ43 Outer Spring Hydraulic Front Shock Absorber
Leaf Spring	Double Ear 6 Leaves 17.5kg Steel Leaf Spring
Rear Axle	5-Hole 1060 Changan Full-Floating Power King Rear Axle (10:31)
Safety & Drivetrain	Integrated Windshield, Bumper, φ51 Drive Shaft, Drum Brakes

Standard Configuration Value Analysis:

Stability: 5-hole 1060 Changan full-floating Power King rear axle paired with a 2440mm wheelbase and 1120mm track width ensures balance under maximum payload.
Reliability: 40×80 national standard steel frame with dual side beam skeleton prevents frame deformation when carrying 600 kg payloads.
Driving Performance: Ergonomic driver seating and φ43 outer spring hydraulic front shocks absorb bumps, maintaining comfort for operators.
Cargo Transportation Capability: 2.0m × 1.35m cargo box with 2.0mm patterned bottom secures bulk agricultural goods, facilitating heavy diesel cargo tricycle or fuel-powered transit.

Optional Configuration

Component	Optional Specification
Motor / Engine	Custom OEM engine tuning and displacement adjustments
Cargo Box	Custom side panel height adjustments and surface coatings
Color Options	Rose Red (Standard) / Custom commercial fleet color schemes
Other Options	Additional utility bumpers and customized rear drive gear ratios

Optional Configuration Value Analysis:

Meeting Different Cargo Demands: Customizable cargo box wall adjustments allow commercial fleet operators using gas powered tricycles for adults to load bulkier crates or loose produce.
Meeting Different Industry Requirements: Corporate fleet color customization helps logistics firms incorporate utility vehicles into company brand fleets.
Meeting Different Market Standards: Flexible factory OEM production enables global distributors to adapt mechanical parameters to satisfy local import regulations.

Other Products

Pilot Dump Electric Tricycle China Cargo Vehicle

Model: SURRIT Pilot Dump

Motor: 1000W PMSM (Optional 1200W PMSM)

Battery Voltage: 60V / 72V (Enlarged box fits up to two 48V 45AH battery packs)

Maximum Speed: ≥30 km/h

Load Capacity: Rated 200 kg (Physical limit is higher due to widened chassis)

Cargo Box Size: 1.6m × 1.1m (Hydraulic Dumping, 450mm Panel)

Application: Bulk cargo dumping, commercial logistics, agricultural transportation

SURRIT King Kong Cargo Electric Tricycle For Commercial Delivery

Model: SURRIT King Kong

Motor Type: 500W PMSM (Optional 800W PMSM)

Battery Voltage: 48V / 60V (Optional 72V High-Voltage System)

Frame Design: 40×60 Integrated Side Beam Frame

Cargo Box Size: 1.35m × 0.95m (Embossed Bottom Engineering Cargo Box)

Tire Specifications: Front 3.50-12 / Rear 3.75-12 (Optional: Front 3.75-12 / Rear 4.00-12)

Application: Last-mile urban delivery, commercial logistics, agricultural transport

150ZH-2AA Gas Powered Tricycles For Adults Freight Transport

Model: SURRIT 150ZH-2AA Gas Powered Tricycles for Adults

Engine / Power Source: ZS162FMJ-S (150 Air-Cooled Engine)

Electrical System: 12V 9Ah Battery

Maximum Speed: 60 km/h

Load Capacity: Rated 600 kg (Curb Weight: 378 kg)

Cargo Box Size: 2.0m × 1.3m (2.0mm Patterned Bottom H-Type Box)

Application: Heavy agricultural freight and commercial logistics

110ZH-AA Truck Tricycle For Cargo Transportation

Model: SURRIT 110ZH-AA Truck Tricycle

Engine / Power Source: ZS1P52FMH-3S (110 Electric Start Engine)

Electrical System: 12V 9Ah Battery

Maximum Speed: 60 km/h

Load Capacity: Rated 300 kg (Curb Weight: 260 kg)

Cargo Box Size: 1.4m × 1.0m (260mm Panel Embossed Bottom Box)

Application: Agricultural delivery and urban freight truck tricycle duty

Xingwang1.5×1.0 Electric Tricycle For Cargo Transportation

Model: SURRIT xingwang1.5×1.0

Motor: 800W PMSM (Optional 1000W PMSM)

Battery Voltage: 48V / 60V (Enlarged box fits up to two 48V 45AH batteries)

Maximum Speed: ≥30 km/h

Load Capacity: Rated 150 kg (High structural limit)

Cargo Box Size: 1.5m × 1.0m (Multiple heavy-duty options available)

Application: Last-mile urban delivery, commercial logistics, agricultural transport

Charge Electric Tricycle For Cargo Transportation

Model: SURRIT Charge

Motor: 800W PMSM (Optional 800W PMSM 24-Tube System)

Battery Voltage: 48V / 60V (Optional 72V High-Voltage System)

Maximum Speed: ≥30 km/h

Load Capacity: Rated 200 kg

Cargo Box Size: 1.5m × 1.1m (Patterned Bottom Engineering Box)

Application: Commercial logistics, last-mile delivery, agricultural transport

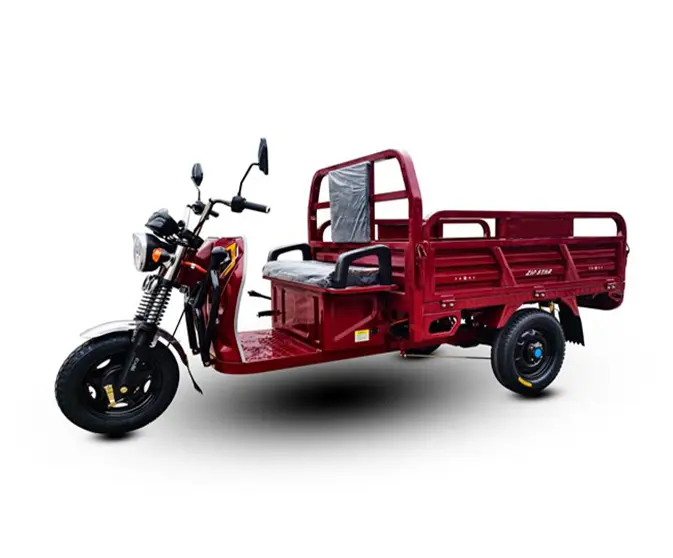

Pilot Electric Tricycle For Cargo Transportation

Model: Pilot 1.6×1.1

Motor: 48V/60V 800W PMSM Motor

Battery Voltage: 48V / 60V (Support up to dual 48V 45AH batteries)

Maximum Speed: 53 km/h

Load Capacity: Rated 200 kg (Physical loading limit is significantly higher)

Cargo Box Size: 1.6m × 1.1m (PG300 Engineering Patterned Bottom Plate)

Application: Cargo transportation, last-mile delivery, agricultural logistics

SURRIT Xingyao 1.5×1.0 China E Tricycle For Cargo Transportation

Model: SURRIT Xingyao 1.5×1.0

Motor: 800W PMSM (Optional 1000W PMSM)

Battery Voltage: 48V / 60V (Optional 72V High-Voltage System)

Maximum Speed: ≥30 km/h

Load Capacity: Rated 150 kg (High structural limit)

Cargo Box Size: 1.5m × 1.0m (F-Type Engineering Cargo Box)

Application: Last-mile delivery, fleet logistics, agricultural cargo transport

150ZH-AA Diesel Cargo Tricycle For Transport

Model: SURRIT 150ZH-AA

Engine / Power Source: ZS162FMJ-S (150 Air-Cooled Fuel Engine)

Electrical Voltage: 12V 9Ah Battery

Maximum Speed: 60 km/h

Load Capacity: Rated 600 kg (Curb Weight: 360 kg)

Cargo Box Size: 1.8m × 1.2m (1.5mm Embossed Bottom H-Type Box)

Application: Agricultural transport, rural logistics, market delivery

150ZH-3AB Truck Tricycle For Cargo Transportation

Model: SURRIT 150ZH-3AB Truck Tricycle

Engine / Power Source: ZS162FMJ-S (150 Air-Cooled Engine)

Electrical System: 12V 9Ah Battery

Maximum Speed: 60 km/h

Load Capacity: Rated 300 kg (Curb Weight: 287 kg)

Cargo Box Size: 1.5m × 1.0m (260mm Panel Embossed Bottom Box)

Application: Agricultural transport, rural delivery truck tricycle operations

110ZH-AC Tricycle Tuk Tuk For Cargo Transportation

Model: SURRIT 110ZH-AC Tricycle Tuk Tuk

Engine / Power Source: ZS1P52FMH-3S (110 Electric Start Fuel Engine)

Electrical System: 12V 9Ah Battery

Maximum Speed: 60 km/h

Load Capacity: Rated 300 kg (Curb Weight: 260 kg)

Cargo Box Size: 1.2m × 0.9m (260mm Panel Embossed Bottom Box)

Application: Compact cargo logistics and market freight transit

SURRIT Xingwang 1.5×1.1 Electric Tricycle For Cargo Transportation

Model: SURRIT Xingwang 1.5×1.1

Motor: 800W PMSM (Optional 1000W PMSM)

Battery Voltage: 48V / 60V (Optional 72V High-Voltage System)

Maximum Speed: ≥30 km/h

Load Capacity: Rated 200 kg (High structural limit)

Cargo Box Size: 1.5m × 1.1m (Optional 1.6m × 1.1m)

Application: Last-mile urban delivery, commercial logistics, agricultural transport

Xingwang 1.35×0.95 Electric Tricycle For Cargo Transportation

Model: Xingwang 1.35×0.95

Motor: 48V/60V 500W PMSM Motor

Battery Voltage: 48V / 60V (High-voltage options available)

Maximum Speed: 53 km/h

Load Capacity: Rated 150 kg (Curb weight: 175 kg)

Cargo Box Size: 1.35m × 0.95m (Embossed Bottom Engineering Cargo Box)

Application: Last-mile urban delivery, light agricultural hauling, retail distribution

150ZH-3AA Truck Tricycle For Cargo Transportation

Model: SURRIT 150ZH-3AA Truck Tricycle

Engine / Power Source: ZS162FMJ-S (150 Air-Cooled Engine)

Electrical System: 12V 9Ah Battery

Maximum Speed: 60 km/h

Load Capacity: Rated 300 kg (Curb Weight: 287 kg)

Cargo Box Size: 1.5m × 1.1m (PG300 Embossed Bottom Engineering Box)

Application: Commercial freight, agricultural transport truck tricycle duty

110ZH-AB Tricycle Tuk Tuk For Commercial Cargo

Model: SURRIT 110ZH-AB Tricycle Tuk Tuk

Engine / Power Source: ZS1P52FMH-3S (110 Electric Start Fuel Engine)

Electrical System: 12V 9Ah Battery

Maximum Speed: 60 km/h

Load Capacity: Rated 300 kg (Curb Weight: 260 kg)

Cargo Box Size: 1.5m × 1.1m (PG300 Embossed Bottom Box)

Application: Commercial freight logistics and rural tricycle tuk tuk delivery

Core Advantages

Mature Export Benchmark

With over 19 years of experience in exporting related products, featuring zero complaints and zero malfunctions, ensuring smooth export of complete vehicles and accessories.

Authoritative Certification

The products have passed the three-system and CE certifications, and have exclusive agents in Europe, America, and Africa; the certifications are traceable and customs clearance is worry-free.

Fast Delivery

With strong production capabilities and world-leading R&D capabilities, it ensures the timely delivery of customized and regular orders.

One-stop Customization

Taking on OEM-level parts supply and personalized design, providing full-process support to meet diverse needs.

24/7 Customer Service

All inquiries and feedback are responded to immediately, ensuring smooth cooperation.

High-Quality OEM/ODM

Cooperating with well-known domestic manufacturers, providing you with cost-effective customized solutions for the development of your own brand.

FAQS

01What is the load capacity and chassis structure of the 150ZH-2AB model?

The SURRIT 150ZH-2AB features a curb weight of 378 kg and a rated load capacity of 600 kg. Belonging to our line of commercial gas powered tricycles for adults, it utilizes a 40×80 national-standard side beam frame, a dual side beam skeleton, a φ51 drive shaft, and 6-leaf (17.5kg) steel springs. This chassis layout disperses heavy loads evenly, allowing operators to haul farm produce and freight across unpaved roads without frame distortion.

02What engine powers this utility vehicle, and what is the maximum speed?

This truck tricycle model is powered by a ZS162FMJ-S 150 air-cooled engine, achieving a top speed of 60 km/h. The engine produces high low-speed torque for climbing steep inclines under a 600 kg load. Combined with a 5-hole 1060 Changan external full-floating Power King rear axle, it delivers reliable power transmission for long-distance rural freight logistics where battery charging is impractical.

03How do you wash and clean fuel-powered utility tricycles after heavy duty work?

To clean fuel-powered utility tricycles safely after farm or construction work, allow the ZS162FMJ-S engine to cool completely. Use low-pressure water and mild soap to wash the 2.0m cargo bed, chassis frame, and tires. Avoid spraying water into the air intake, carburetor, 12V 9Ah battery terminals, or electrical switches. After rinsing, wipe metal contacts dry, check φ51 drive shaft grease, and start the engine briefly to evaporate moisture.

04Why select the 150ZH-2AB truck tricycle model for agricultural transport?

The 150ZH-2AB model offers an extra-large 2.0m × 1.35m cargo bed, making it highly efficient for bulk crop distribution. Equipped with φ43 outer spring hydraulic front shocks, 110/90-16 front tires, and 5.00-12 rear tires, it traverses mud, unpaved farm tracks, and market roads comfortably. The ergonomic seating posture ensures operator comfort during full-day commercial transport schedules.
